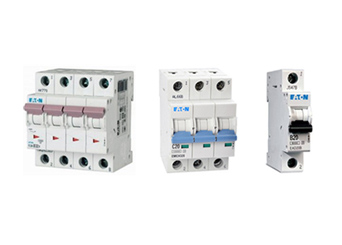

Miniature Circuit Breakers - MCB
Range: PLSM/PLHT/PLS6 DC
Contact position Indicator: Red / Green
Rated Current: 0.5 A To 63A To 125 A
Rated Voltage: AC 230/400V DC 48V/60V/250V
Full Range Of Accessories: Shunt UV, auxiliary Switch, Trip Contact, Remote Operation
Connection as per polarity marking on the product

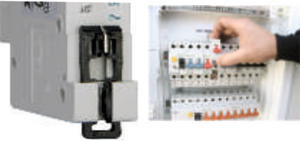

3 Position Mounting Clip: Easy & Quick Maintenance
Allows installation & removal of MCB / other modular devices without removing the busbar and other devices.
Insulated Sliding Shutter: Safe and Secure Termination
- Acts as guide for quick and secure termination
- Makes it impossible for wire to miss the terminal while wiring
- Insulated shutter prevents accidental contact - enhanced safety and system reliability
Contact Position Indicator
- Safe to operate, always Enables visual indication of true position of main contacts
- Ensures high degree of safety during fault conditions: Welded Main Contact / Dolly Free
- True Contact Indication
Bi Connect Terminals: Ease of Wiring
- Allows secure termination of busbars and cables simultaneously
- Looping possible without danger of loose wiring
Remote Operation and Automatic Resetting
- Remote operation
- Automatic restart in the event of undesired tripping
Unique Colour for Each Rating: Appealing Aesthetics and Easy Identification
- Colour knobs provided for better aesthetics & designer look when mounted inside acrylic door distribution board.
- The rating of MCB installed is easily identifiable by distinctive dolly colours.

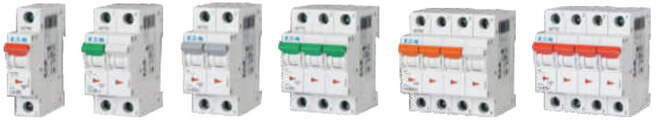

Miniature Circuit Breakers - Type PLSM
- Rated current: 0.5 A to 63 A
- Rated voltage AC: 230/415V, DC: 48V (per pole)
- Rated breaking capacity: 10kA acc. to IEC/EN 60898
- Tripping Characteristics B, C, D
- Low let-through energy
- Bi connect optionally on load or line
- Endurance: 20,000 operations
- Full range of accessories: shunt, UV, auxiliary

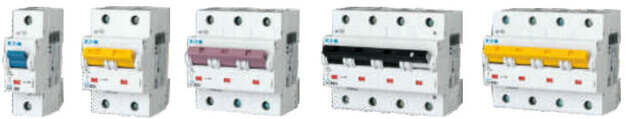

Miniature Circuit Breakers - Type PLHT
- Rated current up to 125A
- Rated Voltage AC: 230/415V, DC: 60V (per pole)
- Rated breaking capacity up to 25kA according to IEC/EN 60947-2
- Tripping characteristics B, C, D
- Accessories: shunt trip, auxiliary switch, anti-tamper device
- Peak withstand voltage Uimp 4kV
- Endurance: 20,000 operations
- 2 Terminal Capacity: 2.5 - 50 mm²
Miniature Circuit Breakers - Type PLS6 DC
- Rated current up to 50A
- Rated voltage DC: 250V per pole, t=4 ms
- 2 poles connected in series DC: 500V
- Rated breaking capacity 10kA acc. to IEC/EN 60947-2
- Tripping Characteristics C
- Connections as per polarity marking on the product
Molded Case Circuit Breakers – MCCB
Molded Case Circuit Breakers – MCCB
- NZM1 up to 160 A
- NZM2 up to 300 A
- NZM3 up to 630 A
- AC/DC Sensitive
Residual Current Circuit Breakers – RCCB

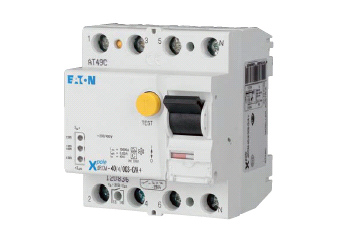

Residual Current Circuit Breakers – RCCB
- Shape compatible with and suitable for standard busbar connection to other devices of the P-series
- Busbar positioning options (above or below)

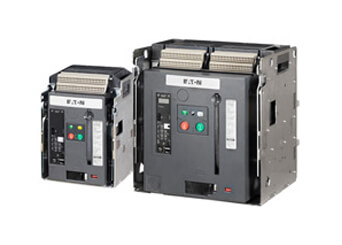

Air Circuit Breakers – IZNX Series
- Versatile Circuit Breakers up to 4000 A - for Cost-effective, Optimized Solutions
- LCD Display with multilingual capability
- “Off” Setting available for ground fault (G) and non-delayed instantaneous trip (I)
Air Circuit Breakers - IZNX Series
Power Contactors

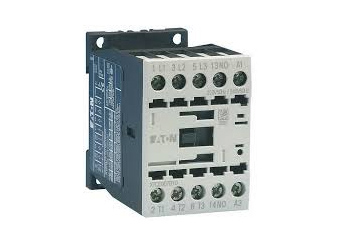

Power Contactor - AC & DC Operated, 3 Pole
- AC Operated Low Coil Consumption: Energy Savings
- DC Operated Electronic Actuated coil as standard from 17 A - 170 A, Optional 185 A onwards
- Coil Terminals on front as standard for quick & easy Wiring
- Type 2 Coordinated starters with PKZ MPCB’s & NZM
- MCCB
Auxiliary Contactors

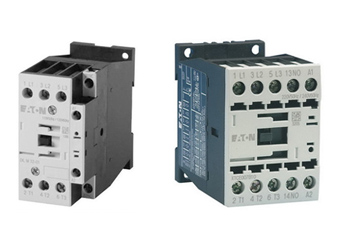

Auxiliary Contactors
- Up to 4 Add-on Auxiliary contacts
- Accessories Mechanical Interlock
- DILEM, 3 POLE, DILER, 3 POLE

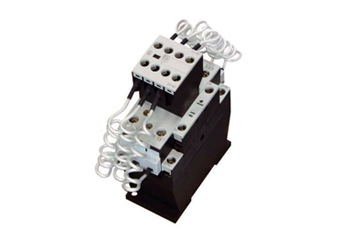

Contactors For Capacitors – DILK
Contactors For Capacitors – DILK
- Group compensation / 12.5 to 50 KVAR at 400V
- Voltage: up to 690V at 50-60 Hz
- Weld resistance with inrush current up to 180 x IN
- Electrical lifespan 0.15 x 106 Switches

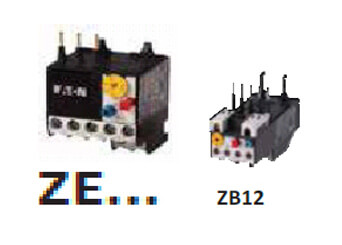

Overload Relays
Overload Relays
- Test / Off Push Button
- Reset Push Button Manual / Auto
- Trip - Free Release
- Direct Mounting
- Overload Relay
- 1 N/O + 1 N/C

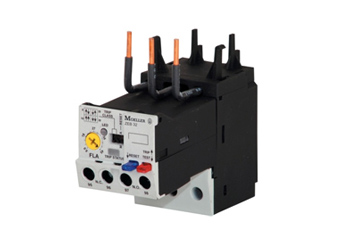

Electronic Overload Relays – ZEB
Electronic Overload Relays – ZEB
- Self supplied electronic overload relay
- Relation internal current transformer 5:1
- Ampere range 0.3A…1500A
- Up to 100A single devices
- Above 100A device + additional current transformer
Combined Residual Current Devices / Miniature Circuit Breaker Devices – RCBO (RCD+MCB)
Combined Residual Current Devices / Miniature Circuit Breaker Devices – RCBO (RCD+MCB)
- Rated breaking capacity: 6 kA & 10 kA
- Rated current: 2 A-40 A
- Operational voltage range: 196-253 V
Combined Residual Current Devices / Miniature Circuit Breaker Devices RCBO(RCD+MCB) Type PKNM
Industrial-grade pushbuttons and selectors by Eaton built for harsh environments.
- Specifications:
- Rated Breaking Capacity: 6 KA & 10 KA
- Rated Current: 2A - 40A
- Operational Voltage Range: 196-253 V

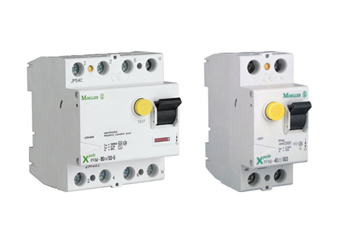

Residual Current Devices - RCD - Electromechanical
Industrial-grade pushbuttons and selectors by Eaton built for harsh environments.
- Range:
- Rated current: 16, 25, 40, 63, 80, 100, 125 A
- Number of poles: 2P, 4P
- Sensitivity: 10, 30, 100, 300, 500 mA
- Special application specific versions:
- Lamp-proof
- Frequency converter proof
- X-Ray-proof type
Pushbuttons, Pilot Lights & Selector Switches
Pushbuttons, Pilot Lights & Selector Switches
- Standard Pushbuttons rated to five million mechanical operations
- All illuminated devices feature LED light units rated to 100,000 hours
- Field-convertible pushbuttons and selector switches (momentary/maintained)
- Most components carry an IP67/69k rating, suitable for high temperature, high-pressure wash down environments
- Laser etched button-lenses and all other front-of-panel accessories can be shared with the M22 line

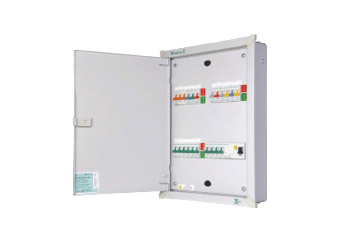

Distribution Boards - DB
Specifications
- Application Standard Bs EN: 50298/IS 13032 : 91
- Incomer options for 100A Isolator or/and 40A-100A
- Busbar system available in both split and non-split variants
- Removable glands plate in Flush version
- Knock outs are provided on top/bottom
- Reliable & safe operation assured through KEMA testing & certifications
